Hoists & Accessories

Midwest Sailing is proud to represent the Great Lakes Lift line of boat hoists. Each hoist features all aluminum construction, high grad bolts, U-bolts, and superior welding for a long lasting boat hoist.

Midwest Sailing is the designer and exclusive retailer for the Delta TL sailboat and small motor boat hoist. In addition, we also offer personal watercraft hoists, vertical hoists (featuring both standard and Hydraulic models), cantilever hoists, and pontoon hoists as well as many options including canopy’s, winches, and bunks. Occasionally, Midwest Sailing will have available used hoists.

Cantilever Boat Hoists

All aluminum construction
Grade 5 bolts and U-bolts (stainless bolts where applicable)
Utilizes an all-welded side designed to facilitate entry to boat from both sides as well as ends.
All in-water cables are stainless steel
Pulley shafts are equipped with grease fittings*
Carpeted utility bunks
36″ adjustable legs with 22″ maximum extension
42″ cradle lift from bottom to full-up position, and eleven inches of water is needed to cover the cradle in lowest position without shallow water option.
8″ of water needed to cover the cradle in lowest position
Electric Winch Optional

Model No. ++	Winch	Capacity	WxL	Rise	Max Beam Width	Approx Weight
1584C	W/E	1500 lbs.	88″ x 110″	40″	84″	295 lbs.
15110C	W/E	1500 lbs.	114″ x 110″	40″	110″	300 lbs.
2496C	W/E	2400 lbs.	100″ x 110″	40″	96″	350 lbs.
24110C	W/E	2400 lbs.	114″ x 110″	40″	110″	356 lbs.
32110C	W/E	3200 lbs.	114″ x 112″	40″	110″	390 lbs.
40110C	W/E	4000 lbs.	114″ x 114″	40″	110″	400 lbs.
40116C	W/E	4000 lbs.	120″ x 114″	40″	116″	415 lbs.
50116CE	E	5000 lbs.	120″ x 138″	40″	116″	500 lbs.

W – wheel on Lorenz winch
E – Electric Lift
++ – Hoists over 8’6″ (102″) must be assembled on site unless MDOT permit is acquired. Additional fee for assembly on-site

Vertical Boat Hoists

All aluminum construction
Grade 5 bolts and U-bolts (stainless bolts where applicable)
Utilizes an all-welded side designed to facilitate entry to boat from both sides as well as ends.
All in-water cables are stainless steel
Pulley shafts are equipped with grease fittings*
Carpeted utility bunks
36″ adjustable legs with 22″ maximum extension
42″ cradle lift from bottom to full-up position, and eleven inches of water is needed to cover the cradle in lowest position without shallow water option.
8″ of water needed to cover the cradle in lowest position
Electric Winch Optional

*Please check with your dealer for environmentally friendly grease.

Model No. ++	Winch	Capacity	WxL	Rise	Max Beam Width	Approx Weight
1798V	W	1750 lbs.	104″ x 104″	40″	98″	300 lbs.
24110V	W	2400 lbs.	120″ x 125″	60″ – 66″**	110″	375 lbs.
40110V	W/H/E	4000 lbs.	120″ x 125″	60″ – 66″ **	110″	415 lbs.
40122V	W/H/E	4000 lbs.	132″ x 125″	60″ – 66″ **	122″	450 lbs.
50115VB E	E	5000 lbs.	125″ x 137″	60″ – 66″ **	115″	650 lbs.
50122V E	E	5000 lbs.	132″ x 137″	60″ – 66″ **	122″	680 lbs.

W – wheel on Lorenz winch
E – Electric Lift
++ – Hoists over 8’6″ (102″) must be assembled on site unless MDOT permit is acquired. Additional fee for assembly on-site
** Depending on winch selected
All Weights listed without accessories.

Pontoon Boat Hoist

All aluminum construction
All in-water cables are stainless steel
Electric Winch Optional
Grade 5 bolts and U-bolts (stainless bolts where applicable)

Model No. ++	Capacity	Rise	Length	Approx Weight
1814 T	1800 lbs.	48″ – 60″	14 ft.	250 lbs.
2421 T	2400 lbs.	48″ – 60″	21 ft.	325 lbs.
2424 T	2400 lbs.	48″ – 60″	24 ft.	375 lbs.
3621 T	3600 lbs.	48″ – 60″	21 ft.	400 lbs.
3624 T	3600 lbs.	48″ – 60″	24 ft.	450 lbs.
3628 T	3600 lbs.	48″ – 60″	28 ft.	500 lbs.

W – wheel on Lorenz winch
E – Electric Lift
++ – Hoists over 8’6″ (102″) must be assembled on site unless MDOT permit is acquired. Additional fee for assembly on-site.

Toon Wheel

Model 2421 Shown with 60" hinges. 48" hinges are also available.

Optional Toon Stop

Toon Roller Nylon Bolt Guard

PWC & Small Boat Hoist

All aluminum construction
All in-water cables are stainless steel
Grade 5 bolts and U-bolts (stainless bolts where applicable)

Model No. ++	Capacity	W x L	Rise	Max Beam Width	Approx. Weight
652 DCA	650 lbs.	55″ x 75″	30″	51″	100 lbs.
652 DCA LA/SF	650 lbs.	55″ x 75″	30″	51″	100 lbs.
852 DCB	800 lbs.	55″ x 75″	30″	51″	120 lbs.
864 DCB	800 lbs.	67″ x 75″	30″	64″	140 lbs.
1064	1000 lbs.	67″ x 87″	30″	64″	155 lbs.
1272	1200 lbs.	74.5″ x 87″	36″	72″	160 lbs.
848 DD	800 lbs./side	104″ x 72″	24″	48″	175 lbs.
860 DD	800 lbs./side	128″ x 72″	30″	60″	270 lbs.
1796	1750 lbs.	100″ x 92.5″	40″	96″	300 lbs.

40″ eise available for 852DCB and 1064 models
++ – Hoists over 8’6″ (102″) must be assembled on site unless MDOT permit is acquired. Additional fee for assembly on-site

Model 642 DCA, most economical model

Model 864 DCB with optional utility bunks. For eider personal watercrafts.

Model 860 DD with independent winch control. Each side is rated at 800 lbs. For two separate PWC.

Model 1796 with standard utility bunks & optional utility sideguides. Jet boat model with carpeted bunks.

Model 652 DCA with 4 hinged carpeted bunks for small sailboats.

"U" bolt terminal connectors are used for the strongest possible cable anchors

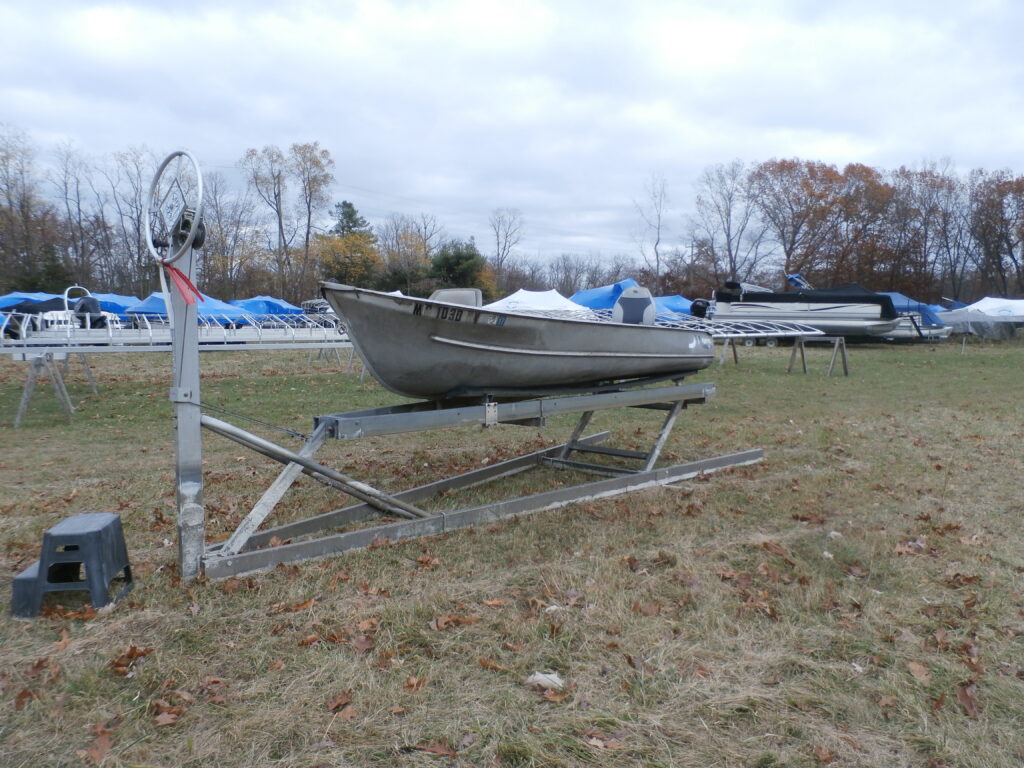

Delta TL Hoist

All aluminum – long lasting, lightweight, low maintenance
Cantilever style lift with one front winch post
Adjustable bunk package
24″ winch wheel
Exclusive axel design for easy installation and removal with Midwest Sailing’s optional removable wheels.
Grade 5 bolts and U-bolts (stainless bolts where applicable)

Benefits

Clean boat bottom – Eliminates algae growth. no Scrubbing!
Protection against wave action, storm damage and blistering
Easy to use – Raise/lower from dock to float boat on/off lift
Security – Hoist can be locked in the “up” position
Dry cockpit and hull – Leave rear drain and/or bailers open while on hoist, and water runs out

Hull	Winch	Cost
Monohull boat lift, assembled	W/E	$2663 Cash Discount Price: $2610
Catamaran boat lift, assembled	W/E	$2816 Cash Discounted Price: $2760

W – wheel on Lorenz winch
E – Electric Lift

Optional Additions

Wheels for launching/retrieving, pair: $142
Auger Anchor kit: $96.40
Lift Tech 12V Winch
with key and solar: $1865
with remote and solar: $2216
Lift Tech 24V Winch
with key and solar: $2130
with remote and solar: $2485

Monohull Boat Lift

Catamaran Boat Lift

Adjustable Bunk

Hoist Wheels

Auger Anchor Kit

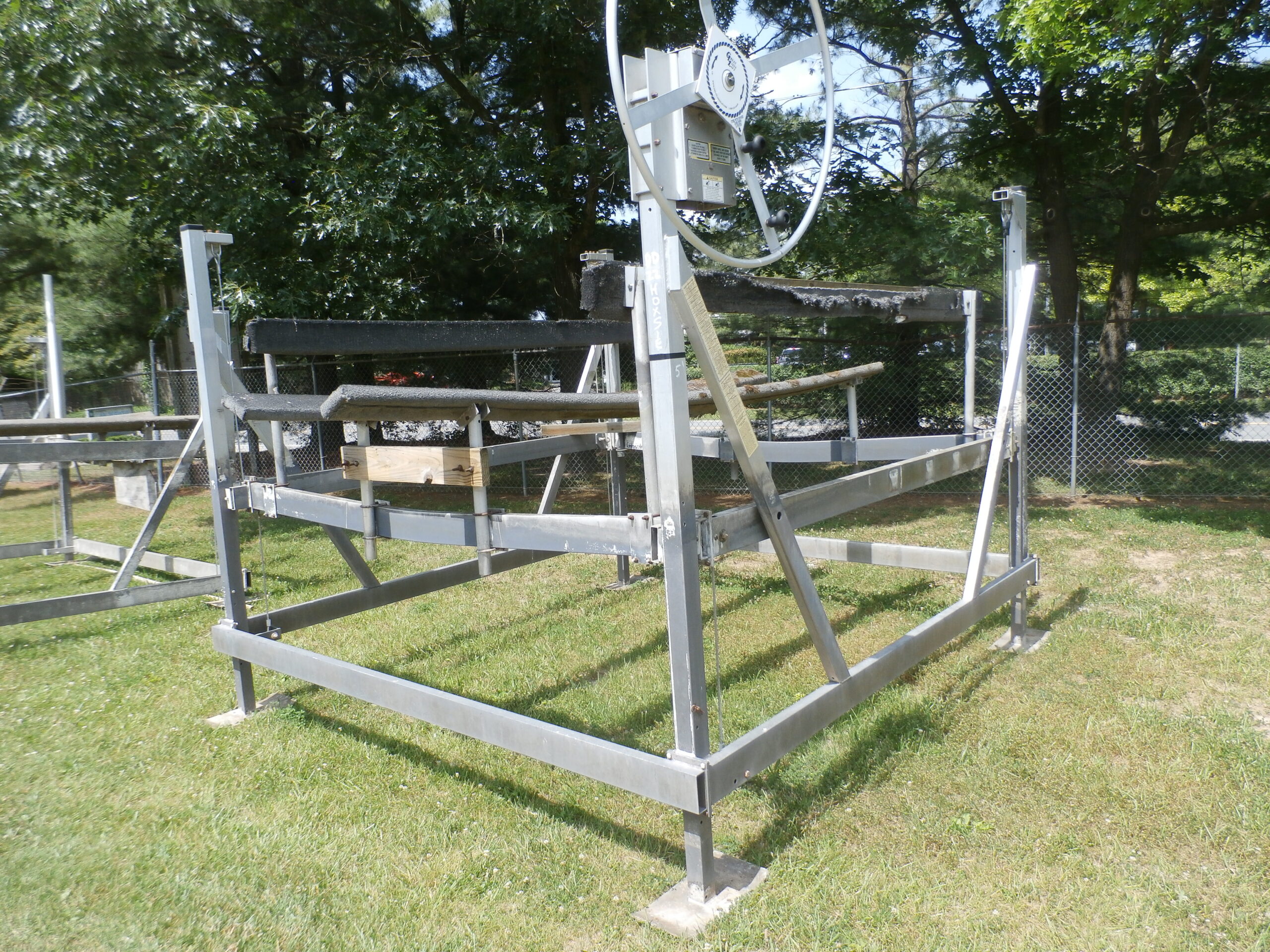

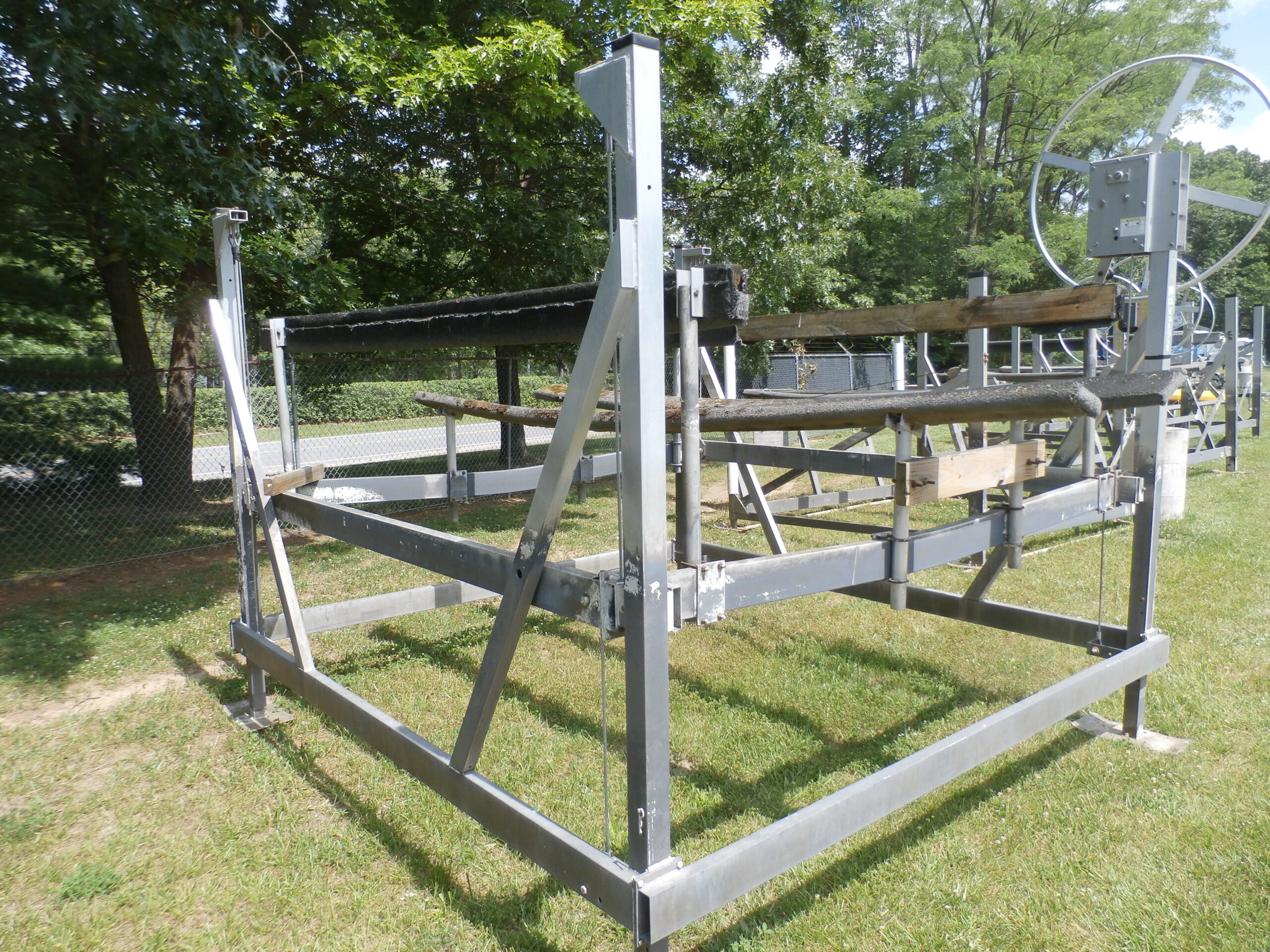

Used Hoist Inventory

ID#: 161-230601
Model: Delta T
Frame: Cantilever
Capacity: 1300 lbs.
Inside Width:
Overall Width:
Year: 1990
Low Profile: No
Axel: Yes
Price w/ 12v Motor (Solar) – $1800 cash or $1872 CC
Price no Motor: $1300 cash or 1352 CC (less motorized)

ID#: 14787-240806
Model: Delta T
Frame: Cantilever
Capacity: 1300 lbs.
Inside Width:
Overall Width:
Year: 1990
Low Profile: No
Axel: Yes
Comments: Bunks set for Hobie Wave
Price: $1100

ID#: 933-241105
Model: Delta T
Frame: Cantilever
Capacity: 1300 lbs.
Inside Width:
Overall Width:
Year: 1991
Low Profile: No
Axel: Yes
Comments: none
Price: $1100

ID#: 100-220705
Model: GLL 40106C
Frame: Cantilever
Capacity: 4000 lbs.
Inside Width: 106″
Overall Width:
Year: 1991
Low Profile: Yes
Axel: Yes
Comments: Manual Winch
Price: $1300 Cash or $1352 CC

ID#: 100-220703
Model: GLL 40110E
Frame: Cantilever
Capacity: 4000 lbs.
Inside Width: 110″
Overall Width:
Year: 2002
Low Profile: Yes
Axel: Yes
Comments: Carpeted bunks, deluxe guides, new manual winch 2024
Price: $1600 Cash or $1664 CC

ID#: 100-220704
Model: GLL 32106
Frame: Cantilever
Capacity: 3200 lbs.
Inside Width: 106″
Overall Width:
Year: 1995
Low Profile: Yes
Axel: Yes
Comments: Carpeted bunks
Price: $1300 Cash or $1352 CC

ID#: 100-220706
Model: GLL 40106
Frame: Cantilever
Capacity: 3200 lbs.
Inside Width: 106″
Overall Width:
Year: 1995
Low Profile: Yes
Axel: Yes
Comments: Carpeted Bunks
Price: $1300 Cash or $1352 CC

ID#: 13550-241105
Model: GLL 12 volt winch motor (solar)
Frame: Cantilever
Capacity: 4000 lbs.
Inside Width: 110″
Overall Width:
Year: 2000
Low Profile: Yes
Axel: Yes
Comments: Carpeted Bunks with canopy 23′
Price: $4000

ID#: 100-241105
Model: GLL manual winch
Frame: Vertical
Capacity: 4000 lbs.
Inside Width: 112″
Overall Width:
Year: 2016
Low Profile: No
Axel: Yes
Comments: Carpeted Bunks
Price: $3000

ID#: 100-250301
Model: GLL manual winch
Frame: Cantilever
Capacity: 2400 lbs.
Height: 48″
Year: 1997
Axel: Yes
Comments: 21′ Length
Price: $1300 Cash or $1352 CC

Not available at the moment. Feel free to reach out for suggestions or questions.

ID#: 100-220701
Model: Lakeshore Canopy with Fabric
Frame: For 23′ long x 108″ wide
Capacity:
Inside Width:
Overall Width:
Year: Null
Low Profile: No
Axel: Null
Comments: Sunbrella like – lite grayuig-tan
Price: $1800 Cash or $1872 CC

Not available at the moment. Feel free to reach out for suggestions or questions.

USED HOISTS ARE AVAILABLE ONLY BY PICK-UP OR DELIVERY TO THE IMMEDIATE AREA. WE DO NOT SHIP BOAT HOISTS

Winches, Bunks & Accessories

Winches

What it says on side of winch	Diameter of spool hub	Winch capacity	Dutton-Lainson catalog number	Our part #	Used on these Great Lakes Lift models
DLB800A	one size	800	DLB800A	1538	652DCA / 852DCB / 864DCB
DLB2500A	one size	2500	DLB2500A	2891	Delta TL new style w/low x-bar
B1200	2.5″	1200	B1200B	3971	Delta T old style w/high x-bar
B1500	2.5″	1500	B1502	3181	1264DCB / 1500C
B1500 (slot at mount hole for pontoon lift)			B1502	3181	2400 pontoon
B2500	2.5″	2500	B2502	3493	3600 pontoon / 2496C / 32110C
B3500	3.125″	3500	B3503	4067	40110C / 40116C / 32110C

Brake winches by Dutton-Lainson for various boat lifts/hoists

Lift Tech (12 or 24V)

42" wheel with 4000# Lorenz winch

Winch & Motors

Hoist Parts

1/4″ Galvanized 7×19 cable* by the foot for hinged leg Great Lakes boat lift or misc cantilever brand.
1/4″ Thimbles*
1/4″ Cable Clamps*
Pulleys, bushings and sheaves for Great Lakes cantilever legged boat lifts.
Cables – ordered for vertically lifted Great Lakes boat lifts. Winch cable usually stocked.
Nylatron sheaves and zerk axle bolt for Great Lakes vertically raised boat lifts.
Bunk hardware and brackets.
Bunk carpet by the foot 9″ and 12″ wide (random color black or charcoal).
Motors – Can supply Lift Tech 12 or 24 volt motors with solar per your needs.
Interstate batteries – two versions, deep cycle and starting.

*3/16″ Galvanized 7×19 cable for older small PWC lifts also by the foot.

Uses a D-Ring system which attaches at each bow with a heavy bungie strap for easy installation.
D-Ring design fastens to a web-like attachment sewn inside the entire length of the canopy.
Lengths: 20′, 23′, 25′, 27′
Standard colors: blue, gray, and white
Other colors are available as special order
16oz. heavy duty UV resistant fabric
Flat seams of the viynl are heat sealed, which alleviates the possibility of leaking or rotted seams
Five year limited warranty through the manufacturer.
Complete canopies and vinyls
